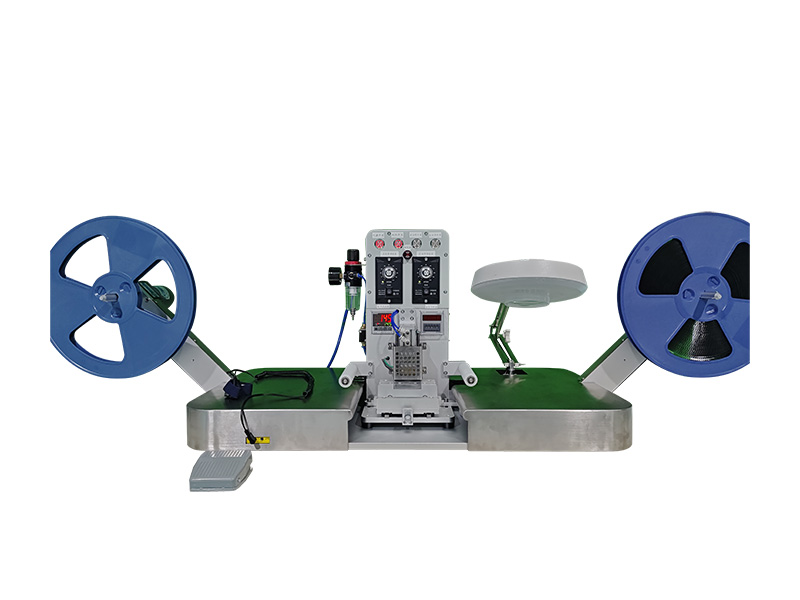

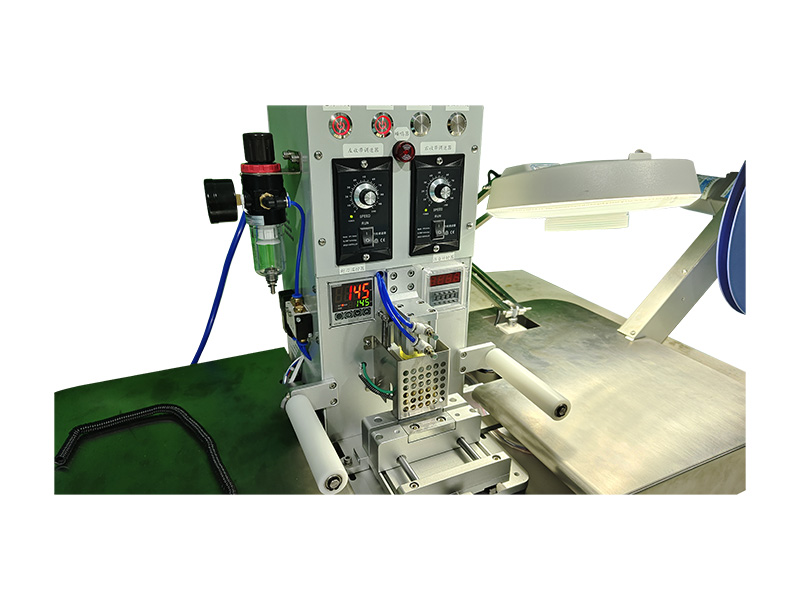

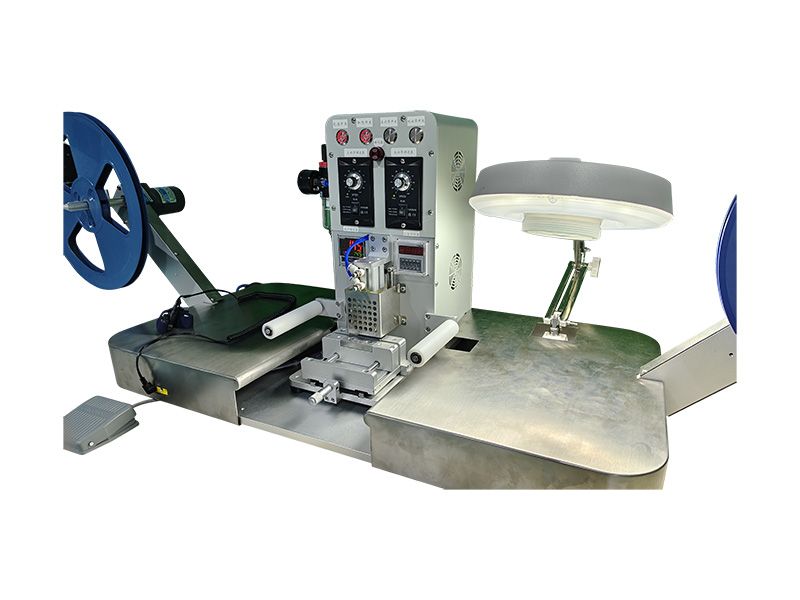

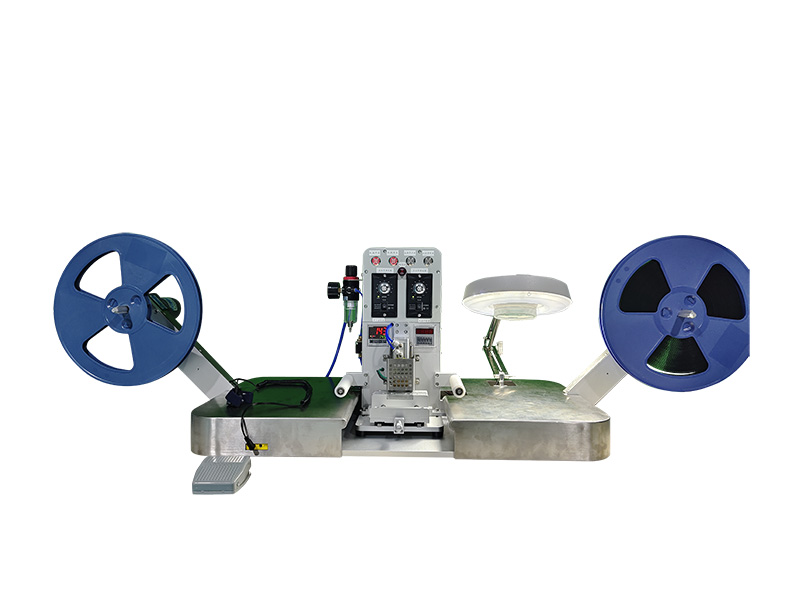

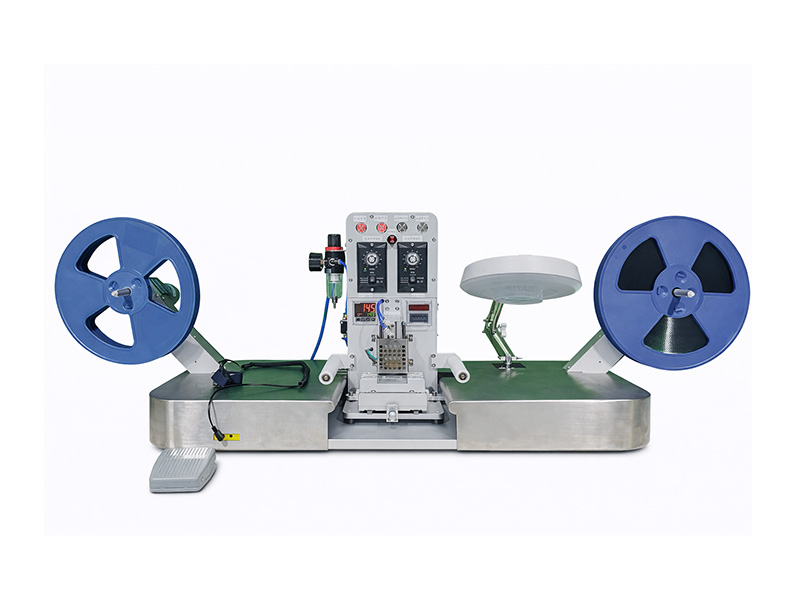

Carrier Tape Rework Machine RP-01EP Carrier Tape Sealing Rework Machine is mainly used for opening, reworking, refilling missing parts, correcting misloaded parts, and resealing pre-sealed carrier tapes. It is suitable for SMT taping and packaging applications such as abnormal rework, small-batch repair, and incoming material recovery. The machine adopts an independent left and right tape unwinding and rewinding structure, with adjustable heat-sealing temperature, controllable pressing time, and convenient foot-switch operation, making it suitable for rework processing of carrier tapes from 8 to 32 mm in width. This equipment can effectively improve rework efficiency, reduce packaging material waste, and is well suited for electronic component packaging factories and related supporting service applications.

  • Detail

  • Product Specs

● Compatible Carrier Tape Width: 8–32 mm
● Applicable Feed Pitch: 4–24 mm
● Compatible Reel Size: 7"–15"
● Heat Sealing Temperature Range: 20–200°C
● Pressing Time Range: 0.5–0.7 s
● Working Air Pressure: 0.5 MPa
● Width Adjustment Method: Linear Guide Rail Sliding Adjustment
● Tape Unwinding / Rewinding Drive Method: Torque Motor
● Power Supply: AC 220V, 50Hz
● Machine Dimensions: 1300 mm (L) × 400 mm (W) × 430 mm (H)

Specification:RP-01EP
